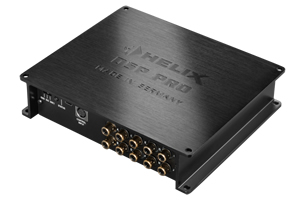

Digital high-end 10-channel signal ­processor with 96 kHz / 24 Bit signal path

Cutting-edge, extremely powerful "fixed point" Audio DSP with 64 Bit resolution 96 kHz Sampling rate - full audio bandwidth up to more than 40 kHz for unparalleled audio performance Parametric 30-band EQ per channel with ultra-precise 0.25 dB steps Time-alignment adjustment in accurate 3.5 mm steps Various high- and lowpass filter characteristics with 6 - 42 dB slope available Different signal routing matrices for each signal input section including configurable signal detections HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc. "Ground lift" switch to avoid ground loops Control input for connecting remote controls and accessories Easy configuration thanks to the professional and user-friendly DSP PC-Tool Version 3 software Inputs: 8 x RCA/Cinch (2 – 4 Volts, 2 channels internally changeable to higher sensitivity 250 – 500 mV), 8 x highlevel (5 – 10 Volts or 10 – 20 Volts), 1 x SPDIF (optical / coaxial switchable), remote input, USB connector Outputs: 10 x RCA/Cinch (max. 6 Volts output voltage) and remote output
