E 42C.2 Helix German Car Hifi

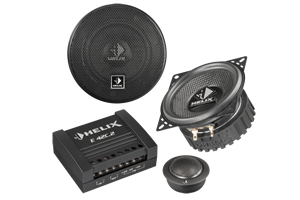

2-way component system, 4 inch / 100 mm woofer with woven fiberglass cone, 1 inch / 25 mm silk dome tweeter with neodymium magnet and separate crossover with 6/12 dB slope, absorption circuit, tweeter protection and adjustable tweeter level
4 inch / 100 mm woofer with very stiff and non-resonating woofer cones made from woven fiberglass Specially shaped butyl surround for larger effective cone area and increased maximum excursion 1 inch / 25 mm silk dome tweeter with neodymium magnet for brilliant and smooth treble response Tweeters are 25° tiltable for perfect alignment with listening position Individual HELIX design basket with additional ventilation holes for better voice coil cooling and high power handling Complex, separate crossover with 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level Grille included
Specifications
Power handling RMS / Max.
50 / 150 Watts
Frequency response
75 Hz - 25,000 Hz
Sensitivity
89 dB 1W / 1m
Diameter woofer - tweeter
100 mm / 25 mm; 4“ / 1“
Impedance
4 Ohms
Crossover
Separate, 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level
