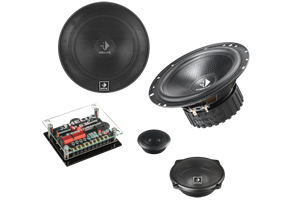

3-way component system, 6.5" / 165 mm woofer with novel glassfiber-paper compound cone, 2" / 50 mm midrange with lightweight, coated silk dome, 1" / 25 mm tweeter with hand-coated silk dome, separate crossover with three-stage tweeter level adjustment

Helix 3 Yollu Komponent

6.5” / 165 mm woofer with novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping 2” / 50 mm midrange with lightweight, hand-coated silk dome for perfect impulse response 1” / 25 mm tweeter with hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects Complex 12 dB crossover network with three-stage tweeter level adjustment; solely equipped with highgrade components:

- Low-distortion inductors with minimum DC resistance
- Low-induction metal film resistors
- Minimum-loss foil capacitors for midrange and tweeter crossover

Gold-plated terminals Grille included

Specifications

Power handling RMS / Max. 125 / 250 Watts
Frequency response 40 Hz - 25,000 Hz
Sensitivity 90 dB 1W / 1m
Impedance 4 Ohms
Crossover 12 dB with tweeter level adjustment
