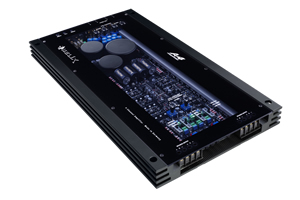

A4 Helix German Car Hifi
4-channel heigh-end amplifier with integrated active crossover
Extremely stable ouput stage with selected MOSFET transistors Drivers in Class A Technology for lowest possible THD Processor-controlled technology for optimized operation Smart protection circuits against overheating, over- and undervoltage, speaker short circuiting, low impedance and faulty connection 1 % accurate components for perfect sound quality 24 carat gold-plated solid connection terminals suitable for 25 mm² / gauge 4 Temperature-optimised heatsink for effi cient heat dissipation
Specifications
4 Ohm'da
4 x 85 Watts / 150 Watts
2 Ohm'da
4 x 150 Watts / 250 Watts
Bridged 4 Ohm'da
2 x 270 Watts / 450 Watts
Bridged 2 Ohm'da
2 x 395 Watts / 650 Watts
Frekans Tepkisi
15 Hz - 20,000 Hz
Input Sensitivity
500 mVolts - 8 Volts
Ölçüler (H x W x D)
35 x 432 x 240 mm
1.38 x 17.0 x 9.45
