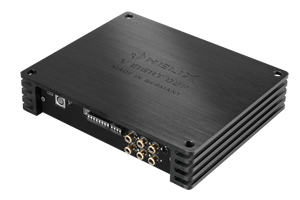

V EIGHT DSP Helix German Car Hifi
8-channel amplifier with integrated digital 10-channel signal processor
New “Pure Class GD” concept for outstanding sound quality combined with best possible efficiency Cutting-edge, extremely powerful “fixed point” Audio DSP with 64 Bit resolution and 1.2 billion MAC operations per second Eight speaker outputs with up to 120 Watts RMS into 2 Ohms Two processed RCA outputs Inputs: 6 x RCA, 6 x Highlevel with up to 20V RMS input sensitivity, optical SPDIF input Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc. Automatic Remote switch Compact design with low heat dissipation thanks to extraordinary efficiency
Specifications
4 Ohm'da
75 Watts per channel
2 Ohm'da
120 Watts per channel
Frekans Tepkisi
20 Hz - 22,000 Hz
Girişler
6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Çıkışlar
8 x Speaker
2 x RCA / Cinch
2 x Remote Out
Ek Özellikler
Control Input, USB, HEC slot
Ölçüler (H x W x D)
44 x 220 x 180 mm
1.73 x 8.66 x 7.09
