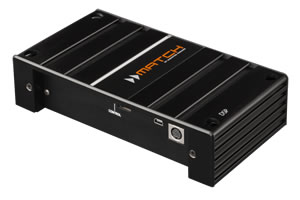

DSP incl. EPC 5.2 Match By Audiotec Fischer
Digital 6-channel signal processor with 56 Bit DSP and integrated Easy Plug Cable 5.2
Easy Plug Cable EPC 5.2 with 5.00 m length for easy connecting
Windows interface – communication via USB 2.0
MicroSD slot to upload DSP settings without having to connect the DSP to a PC
Special audio DSP with a resolution of 56 Bit – optimized for highest sound quality
Freely configurable inputs and outputs
Graphical 30-band EQ per channel with the “fine adjustment” of the individual bands in 1/24 octave steps and time correction in 7-mm steps, all established filter characteristics are available and much more
Inputs: 4 x highlevel, 1 x AUX stereo phone jack 3.5 mm, 1 x remote in, 1 x control input, MicroSD and USB
Outputs: 6 x RCA and remote output
Extremely compact dimensions: 44 x 185 x 100 mm / 1.73 x 7.29 x 3.39“
Specifications
Output voltage
4 Volts RMS
Frequency response
10 - 22,000 Hz
DSP bandwith
56 Bit
DSP processing power
172 MHz
Input sensitivity
Highlevel 10 Volts RMS
Lowlevel 2.5 Volts RMS
Outputs
6 x RCA
1 x Remote out
Inputs
4 x Highlevel speaker Input
1 x AUX stereo jack 3.5 mm
1 x Remote In
Dimensions (H x W x D)
44 x 185 x 100 mm
1.73 x 7.28 x 3.93"
