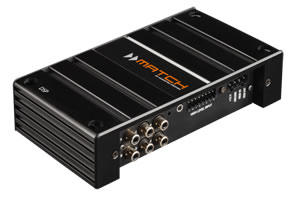

MATCH DSP Match By Audiotec Fischer
Digital 6-channel signal processor with 56 Bit DSP
Powerful "fixed point" Audio DSP with 56 Bit resolution
Freely configurable inputs and outputs
Paragraphic 30-band EQ per channel with ultra-precise 0.25 dB steps, fine adjustment of the individual bands in 1/24 octave steps and a quality setting between 0.5 and 15
Time-alignment adjustment in narrow 7 mm steps
Various filter characteristics with 6 - 30 dB slope available
Inputs: 4 x highlevel, 1 x Aux stereo phone jack 3.5 mm
Outputs: 6 x RCA and remote output
Extremely compact dimensions: 44 x 185 x 100 mm / 1.73 x 7.29 x 3.93“
Specifications
Output voltage
4 Volts RMS
Frequency response
10 - 22,000 Hz
DSP bandwith
56 Bit
DSP processing power
172 MHz
Input sensitivity
Highlevel 10 Volts RMS
Lowlevel 2.5 Volts RMS
Outputs
6 x RCA
1 x Remote out
Inputs
4 x Highlevel speaker Input
1 x AUX stereo jack 3.5 mm
1 x Remote In
Dimensions (H x W x D)
44 x 185 x 100 mm
1.73 x 7.28 x 3.93"
