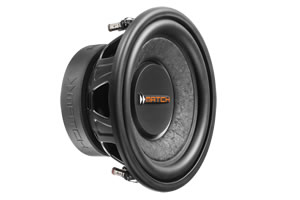

MW 10W-D Match By Audiotec Fischer
10" / 25 cm subwoofer with dual voice coil for very compact vented enclosure
Extremely stiff, hand-scooped paper cone Very long linear excursion Double ventilated voice-coil for minimum compression effects and high power handling Impedance 2 x 2 Ohms Powerful magnet system for compact vented enclosures
Specifications
Power handling RMS
300 / 600 Watts
Voice coil diameter
50.8 mm
Impedance
2 x 2 Ohms
DC resistance
2 x 1.6 Ohms
Resonance frequency
36 Hz
Efficiency 1 W / 1 m
88 dB
Sealed net volume
19 L
Outer diameter
265 mm / 10.43“
Cutout diameter
232 mm / 9.13“
Mounting depth
128.5 mm / 5.06“
