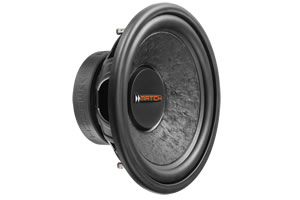

MW 12W-D Match By Audiotec Fischer
12" / 30 cm subwoofer with dual voice coil for very compact vented enclosure
Extremely stiff, hand-scooped paper cone Very long linear excursion Double ventilated voice-coil for minimum compression effects and high power handling Impedance 2 x 2 Ohms Powerful magnet system for compact vented enclosures
Specifications
Power handling RMS
300 / 600 Watts
Voice coil diameter
50.8 mm
Impedance
2 x 2 Ohms
DC resistance
2 x 1.6 Ohms
Resonance frequency
32 Hz
Efficiency 1 W / 1 m
90 dB
Sealed net volume
18 L
Outer diameter
317 mm / 12.48“
Cutout diameter
281 mm / 11.06“
Mounting depth
144 mm / 5.67“
